Field Configuration

Field Configuration is the most critical part of setting up the PA DiscoveryOS Shopify App. It defines which product and variant fields are synchronized with Particular Audience and how they are indexed for ATS, recs etc.

Understanding Shopify Product Data

Shopify products contain two types of fields:

1. Standard Fields

These are built-in Shopify fields that exist on every product. The app automatically tracks these standard fields:

Field	Description	Location
productId / legacyResourceId	Unique product identifier	Product
title	Product name	Product
status	Product status (ACTIVE, ARCHIVED, DRAFT)	Product
vendor	Product vendor/supplier	Product
images	Product image collection	Product
priceRangeV2	Price range information	Product
description / descriptionHtml	Product description	Product
handle	URL-friendly product identifier	Product
variants	Product variant collection	Product
tags	Product tags	Product
collections	Associated collections	Product
publishedAt	Publication timestamp	Product
createdAt	Creation timestamp	Product
updatedAt	Last update timestamp	Product
productType	Product type categorization	Product
onlineStorePreviewUrl	Preview URL	Product
totalInventory	Total inventory across variants	Product
tracksInventory	Whether inventory is tracked	Product

2. Custom Metafields

Metafields are custom fields that store additional data specific to your store. These must be explicitly configured in Field Configuration.

Metafields exist at two levels:

• Product Metafields: Custom data attached to products
• Variant Metafields: Custom data attached to product variants

Accessing Field Configuration

1. Navigate to the app home page
2. Click Configuration in the navigation
3. Select the Field Config tab

Creating a Field Configuration

Basic Configuration

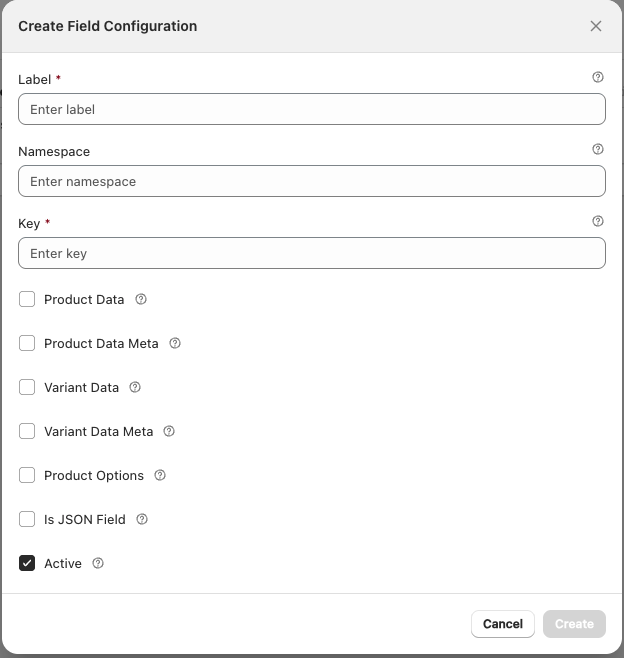

To add a new field configuration:

1. Click Add Field Configuration
2. A form modal will appear

Configuration Parameters

Parameter	Description	Required
Label	Display name for the metafield (e.g., "Highlight 1 Text")	Yes
Namespace	Shopify metafield namespace (e.g., pa, custom, content)	No
Key	Unique identifier for the metafield (e.g., highlight_1_text)	Yes
Product Data	Check if this is a standard product field	Conditional*
Product Data Meta	Check if this is a product metafield	Conditional*
Variant Data	Check if this is a standard variant field	Conditional*
Variant Data Meta	Check if this is a variant metafield	Conditional*
Product Options	Check for variant fields that need individual indexing	No
JSON Field	Check whether any fields included in the JSON metafield require individual indexing	No
Active	Enable tracking for this field	Yes

*At least one data type checkbox must be selected.

Field Type Selection Guidelines

Choose the appropriate checkbox based on your field type:

Field Type	Select
Standard Shopify product field (e.g., title, vendor)	Product Data
Custom product metafield	Product Data Meta
Standard Shopify variant field (e.g., price, sku)	Variant Data
Custom variant metafield	Variant Data Meta
Variant field requiring separate indexing	Product Options

Product Options

Use Product Options for variant-level fields that should be indexed separately. For example, if you want to search specifically by variant color or size options, enable this checkbox.

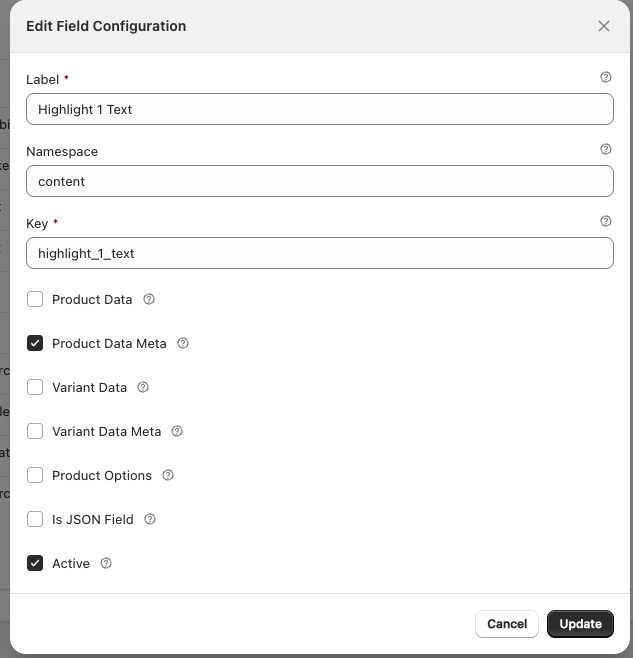

Example: Simple Product Metafield

Let's configure a simple text metafield called "Highlight 1 Text":

Label: Highlight 1 Text
Namespace: content
Key: highlight_1_text
☑ Product Data Meta
☐ Product Data
☐ Variant Data
☐ Variant Data Meta
☐ Product Options
☑ Active

JSON Field Processing

Many metafields contain complex JSON data structures. The app provides three processing types to handle different JSON formats.

JSON Processing Types

Type	Use Case	Example Metafield
Options	Array of simple values stored as grouped options	pa.key_features
Standard	Flat JSON objects with key-value pairs	pa.pa_attributes, pa.supplier
Nested	Complex nested structures with arrays of objects	pa.techSpecs, pa.dimensions

Processing Type 1: Options

Use Case: Array of simple values to be stored as grouped options

Example Metafield: pa.key_features

Sample JSON Data

[
  { "order": 1, "value": "6.5\" Super Retina XDR display" },
  { "order": 2, "value": "A19 Pro Chip" },
  { "order": 3, "value": "Up to 27 hour battery life" },
  { "order": 4, "value": "48MP Fusion rear camera" },
  { "order": 5, "value": "Crash detection" },
  { "order": 6, "value": "Dual eSIM Only" }
]

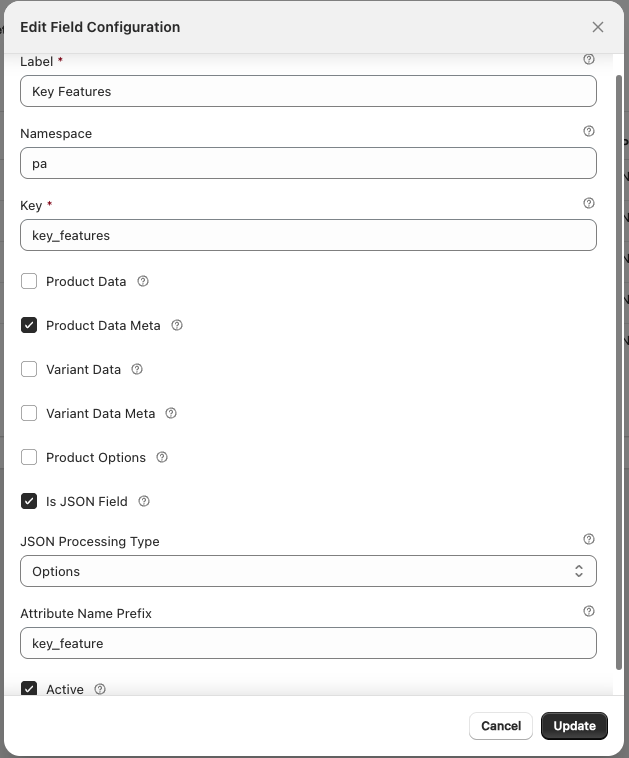

Configuration

Label: Key Features
Namespace: pa
Key: key_features
☑ Product Data Meta
☑ Active

JSON Processing:
  Processing Type: Options
  Attribute Name Prefix: key_features (optional)

Result: Each value in the array is stored as a separate option with the attribute key key_features.

Attribute Name Prefix

If left blank, the metafield key is used as the attribute name. If set, it overrides the default naming.

Processing Type 2: Standard

Use Case: Flat JSON objects with key-value pairs

Example 1: All Fields

Metafield: pa.pa_attributes

Sample JSON Data:

{
  "general-information_colour": "Gold",
  "connections_bluetooth": "Bluetooth v6",
  "power-and-charging_battery": "Up to 27 hours local video playback",
  "cameras_front-camera": "18MP Center Stage: f/1.9 aperture",
  "general-information_family": "iPhone Air",
  "product-dimensions_product-height-mm": 156.2,
  "connections_sim-card-type": "Dual eSIM"
}

Configuration:

Label: PA Attributes
Namespace: pa
Key: pa_attributes
☑ Product Data Meta
☑ Active

JSON Processing:
  Processing Type: Standard
  Attribute Name Prefix: (leave blank)
  Exclude Keys: (leave blank)
  Include Keys: (leave blank)

Result: All key-value pairs are stored as separate attributes.

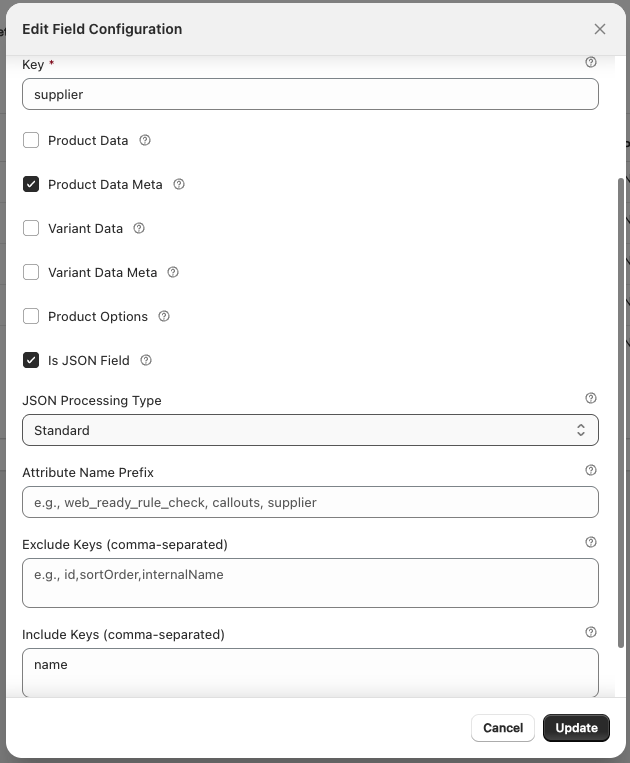

Example 2: Include Specific Fields

Metafield: pa.supplier

Sample JSON Data:

{
  "id": "22487",
  "type": "Supplier",
  "name": "APPLE PTY LTD"
}

Configuration:

Label: Supplier
Namespace: pa
Key: supplier
☑ Product Data Meta
☑ Active

JSON Processing:
  Processing Type: Standard
  Attribute Name Prefix: (leave blank)
  Exclude Keys: (leave blank)
  Include Keys: name

Result: Only the name field is extracted and stored as an attribute.

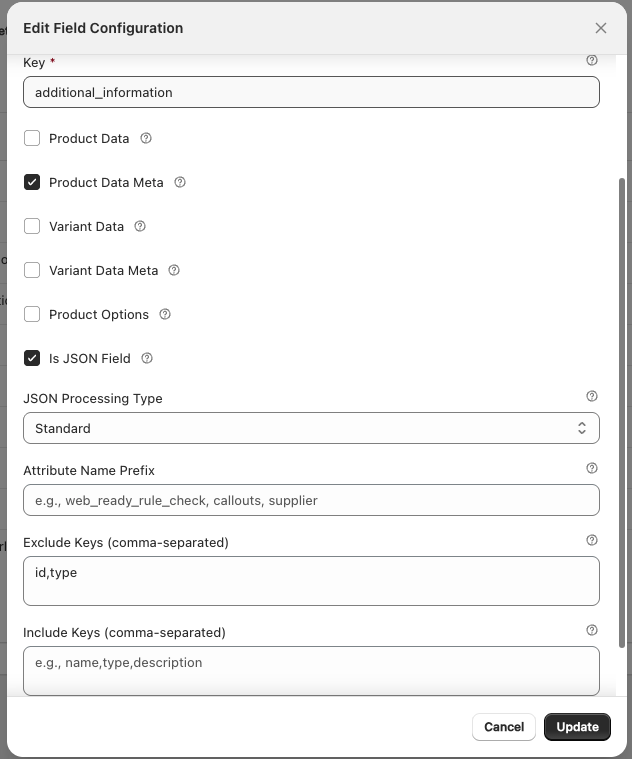

Example 3: Exclude Specific Fields

Metafield: pa.additional_info

Sample JSON Data:

[
  {
    "id": 146,
    "type": "WebAdditionalInfo",
    "descText": "No physical SIM card slot available. Check with your service provider for eSIM compatibility.",
    "heading": "eSIM Only Device",
    "internalName": "eSIM Only Device Warning"
  }
]

Configuration:

Label: Additional Info
Namespace: pa
Key: additional_information
☑ Product Data Meta
☑ Active

JSON Processing:
  Processing Type: Standard
  Attribute Name Prefix: (leave blank)
  Exclude Keys: id,type
  Include Keys: (leave blank)

Result: All fields except id and type are stored as attributes (descText, heading, internalName).

Include vs Exclude

• Include Keys: Only specified fields are extracted (whitelist)
• Exclude Keys: All fields except specified ones are extracted (blacklist)
• If both are empty, all fields are extracted
• Cannot use both Include and Exclude simultaneously

Processing Type 3: Nested

Use Case: Complex nested structures with arrays of objects

Example Metafield: pa.techSpecs

Sample JSON Data

[
  {
    "name": "Screen Technology",
    "sortOrder": 0,
    "customDimensions": false,
    "labels": [
      {
        "attribute": "Screen Size (Inches)",
        "value": "6.5",
        "sortOrder": "0",
        "featured": false
      },
      {
        "attribute": "Display",
        "value": "Super Retina XDR OLED",
        "sortOrder": "1",
        "featured": true
      },
      {
        "attribute": "Display Resolution (px)",
        "value": "2736 x 1260, 460ppi, HDR TrueTone",
        "sortOrder": "2",
        "featured": false
      }
    ]
  },
  {
    "name": "Capacity",
    "sortOrder": 1,
    "customDimensions": false,
    "labels": [
      {
        "attribute": "Storage Capacity",
        "value": "256GB",
        "sortOrder": "0",
        "featured": true
      },
      {
        "attribute": "Memory",
        "sortOrder": "1",
        "featured": false
      }
    ]
  }
]

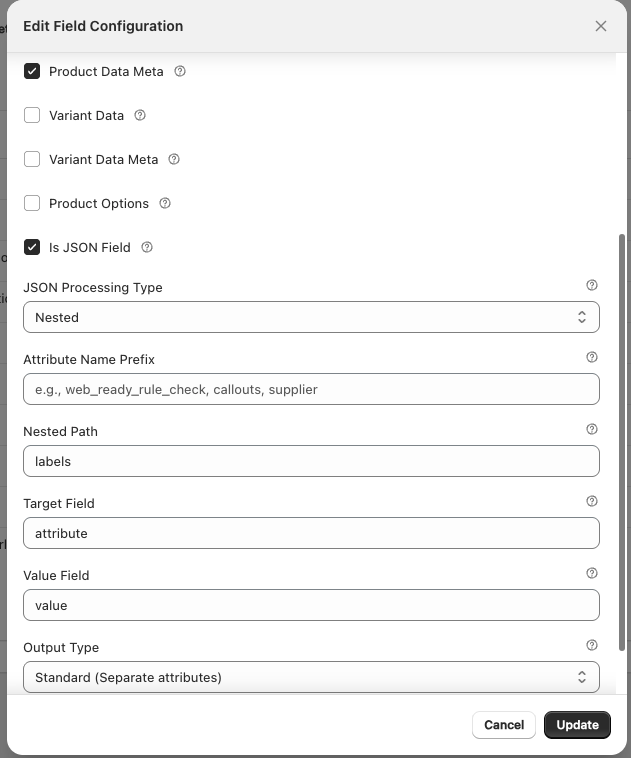

Configuration

Label: Tech Specs
Namespace: pa
Key: techSpecs
☑ Product Data Meta
☑ Active

JSON Processing:
  Processing Type: Nested
  Attribute Name Prefix: (leave blank)
  Nested Path: labels
  Target Field: attribute
  Value Field: value
  Output Type: Standard (Separate attributes)

Configuration Parameters

Parameter	Description	Example
Nested Path	Path to the array containing target data	labels
Target Field	Field name to use as attribute key	attribute
Value Field	Field name containing the attribute value	value
Output Type	How to store extracted data	Standard (Separate attributes)

Result: Extracts attribute-value pairs from the nested labels array:

• Screen Size (Inches): 6.5
• Display: Super Retina XDR OLED
• Display Resolution (px): 2736 x 1260, 460ppi, HDR TrueTone
• Storage Capacity: 256GB
• Memory: (empty value)

Managing Field Configurations

Viewing Configurations

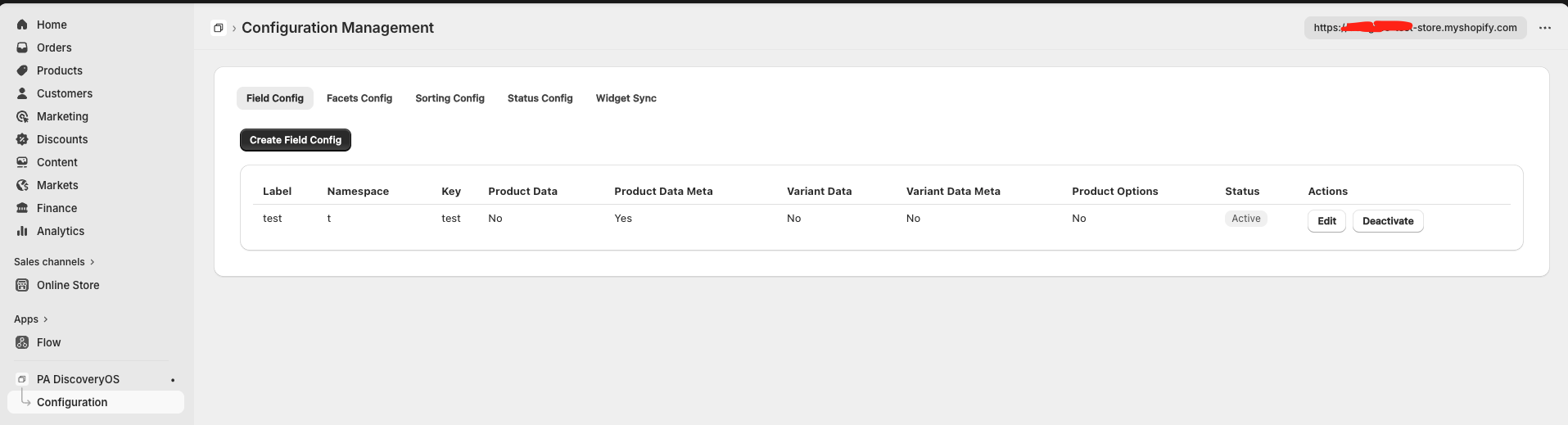

The Field Config tab displays all configured fields in a table:

Column	Description
Label	Display name of the field
Key	Metafield key
Namespace	Metafield namespace
Type	Field type (Product Data, Product Meta, Variant Data, Variant Meta)
Status	Active or Inactive
Actions	Edit or Delete

Editing a Configuration

1. Locate the field in the configuration list
2. Click the Edit icon (pencil)
3. Modify the configuration in the modal
4. Click Save

After Editing

After modifying field configurations, you must perform a product sync to apply changes to existing products.

Activating/Deactivating Fields

Toggle the Active checkbox to enable or disable tracking for a field without deleting the configuration.

• Active: Field is synced during product synchronization
• Inactive: Field is ignored during synchronization

---
